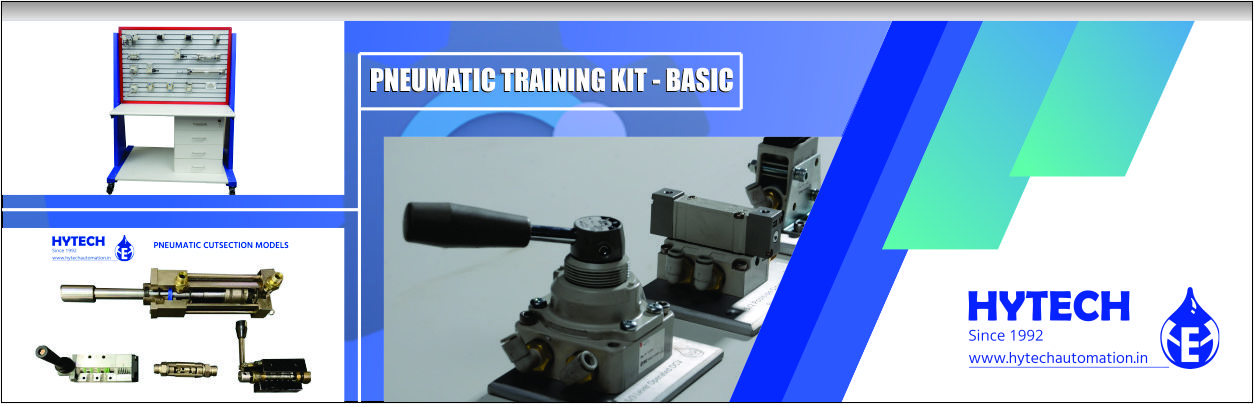

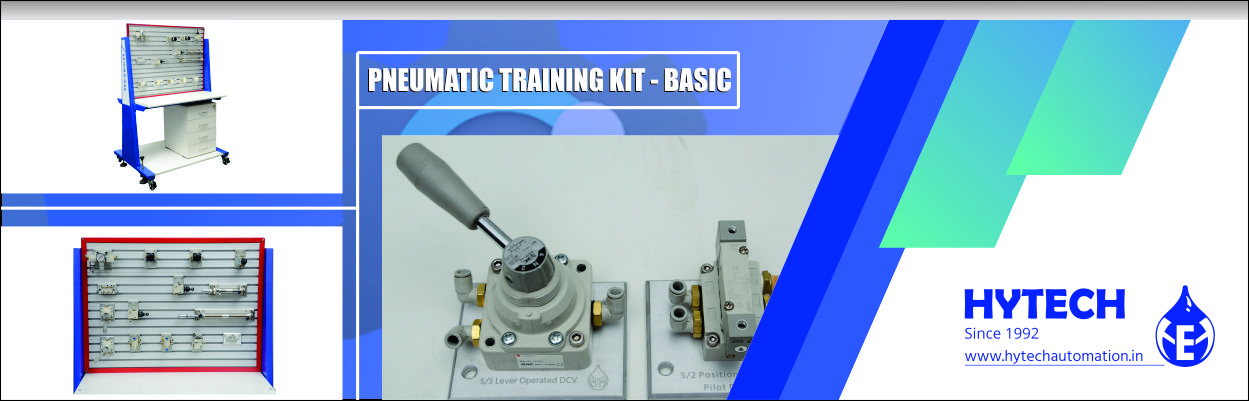

Basic Pneumatic Training Kit is designed to provide hands on experience on conventional pneumatic valves. Most of the commonly used pneumatic valves are provided along with Basic Pneumatic Training Kit. Each vale is mounted on a plate which is engraved with its name as well as symbol. This way, participants can understand as well as design pneumatic circuits with pneumatic symbols.
Pneumatic circuit design as well as simulation software is also provided with basic pneumatic training kit.
Following accessories are provided with Basic Pneumatic Training Kit for ease of operation:
- Three way Two position Hand slide valve
- Five way manifold
- Four way manifold
- Blocking (Isolation) sticks

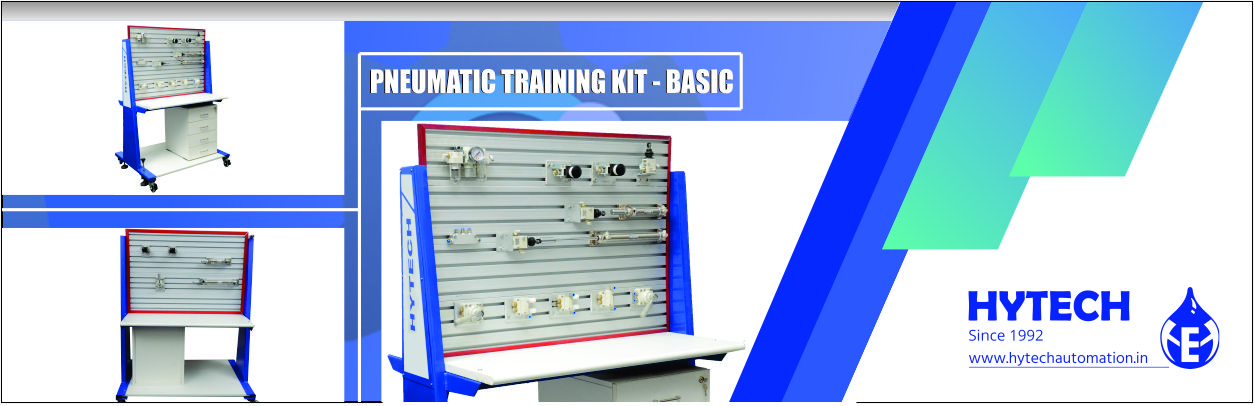

Basic Pneumatic Training Kit:
- Horizontal flat face (front) : 950mm x 400mm
- Horizontal flat face (back) : 950mm x 400mm
- Vertical work area on front face : 950mm x 720mm
- Vertical work area on back face : 950mm x 720mm
Following types of valves are provided with Basic Pneumatic Training Kit:
- Hand Operated / Lever Operated Direction Control Valves
- Hand Operated / Push Button Operated Direction Control Valves
- Pilot Operated Direction Control Valves
- Logic Valves (AND / OR)
- Actuators (Cylinders)
- Flow Control Valves
- Air Treatment Units (FRL, Manifolds, etc)
- Hand Slide Valve
