This robotic cell is designed for hands on training on industrial robots with pick and place operations as well as machine loading applications.
Cell includes entire accessories such as fencing, door switch as well as pneumatic vice and pneumatic chuck for machine loading applications.

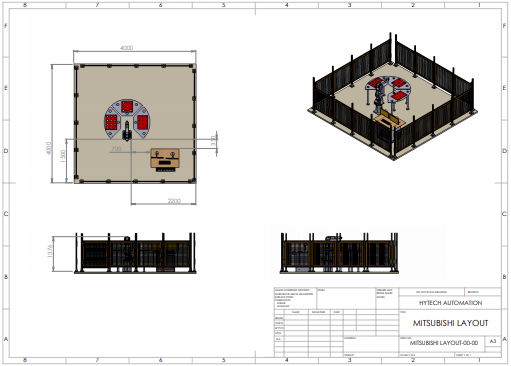

3D PDF File
Entire list of accessories provided along with Hytech Robotic Cell (Pick and Place) are as follows:
- 6 Axes Industrial Robot (Fanuc / Mitsubishi / KUKA)
- Industrial Gripper (SMC / Festo)

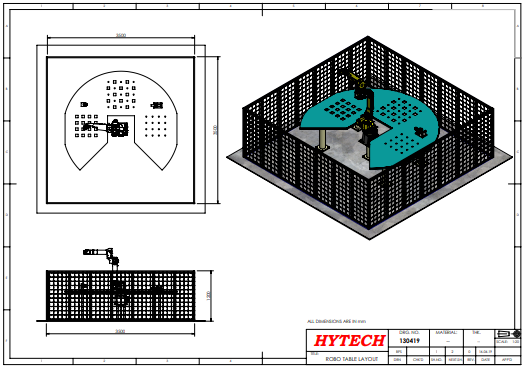

- Robot table for pick and place operations with size as per the robot reach
- Raw jobs (Cylindrical job and flat plate)
- Pneumatic Vice
- Pneumatic Chuck
- Pneumatic Compressor
- Five Way Two Position Double acting solenoid valve (Qty: 03)
- Robot Pedestal with chemical grouting
- Complete fencing arrangement with grouting
- Door locking switch
- I/O compatibility with minimum 16 inputs and 16 outputs
- Stabiliser along with 5 meter power cable
- Air compressor with minimum 60 Ltr tank and 1Hp Motor capacity
- Digital Pneumatic pressure switch with analog output
- Chemical grouting kit
- 3 storey tower lamp for operation indication
Experiments that can be performed on this kit are as follows:
- Pick and place operation of Cylindrical job
- Pick and place operation of flat plate
- Assembly of cylindrical job over flat plate
- Machine loading operation with flat plate pneumatic vice
- Machine loading operation with cylindrical job and pneumatic chuck
- Robot operation with Door switch function
This kit offers hands on experience on all industrial applications of pick and place robot. Necessary control panel with wiring and pneumatic cable along with accessories are provided with the robotic arm.
In a nutshell, Hytech Robotic cell is a plug and play type of an equipment where all necessary components and requirements are provided along with the system. User is expected to provide sufficient space required as well as appropriate power supply.
