Hytech CIM (Computer Integrated Manufacturing System) is designed to provide hands on experience on latest manufacturing technology to participants. There are two options / layouts from which customers can choose their optimum system.
Individual machines / equipment such as CNC Turning Center, CNC Milling Center, Industrial 6 Axes Robot, Automated Guided Vehicle, Gantry, PLC, HMI, SCADA, ASRS, 3D Factory design and Simulation software can be used by First year as well as second year students.
Entire system in integrated mode can be operated by third years / last year students.
CIM system also comes with an option of ‘CAD-CAM EXPERT’ module where students can learn and practice CNC technology right from the scratch. Details of this additional module are explained after layout 2 details. ‘CAD-CAM EXPERT’ module can be included in any of the 2 CIM layouts.

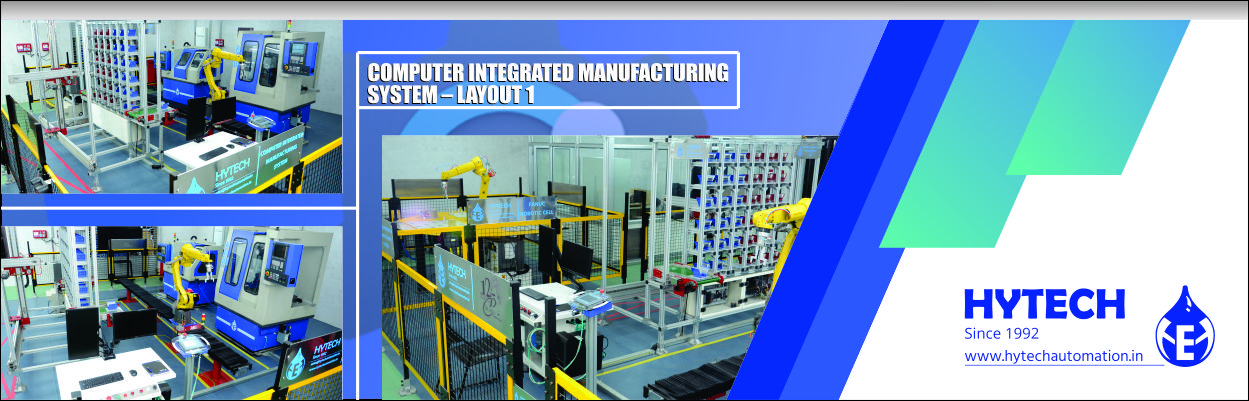

Layout 1 (Computer Integrated Manufacturing System with 6 Axes Industrial Robot):
This layout consists of following major equipment / software:-
- CNC Turning Center
- CNC Milling (Vertical Machining) Center
- Automatic Storage and Retrieval System with linear transfer station (36 cells)
- Industrial Robot with 6 axes and minimum reach of 1400mm with 10KG payload capacity
- Gantry with Linear motion guideways for robot movement (7th axis) with minimum travel of 5 meter
- Industrial SCADA for communications as well as control of entire system
- 3D Simulation as well as design software (Factory design) with OPC UA connectivity (30 seats)
- Central control station with industrial PLC for entire system connectivity (Industry 4.0 ready)
- Movable Control pendant with touch screen HMI (8 meter)

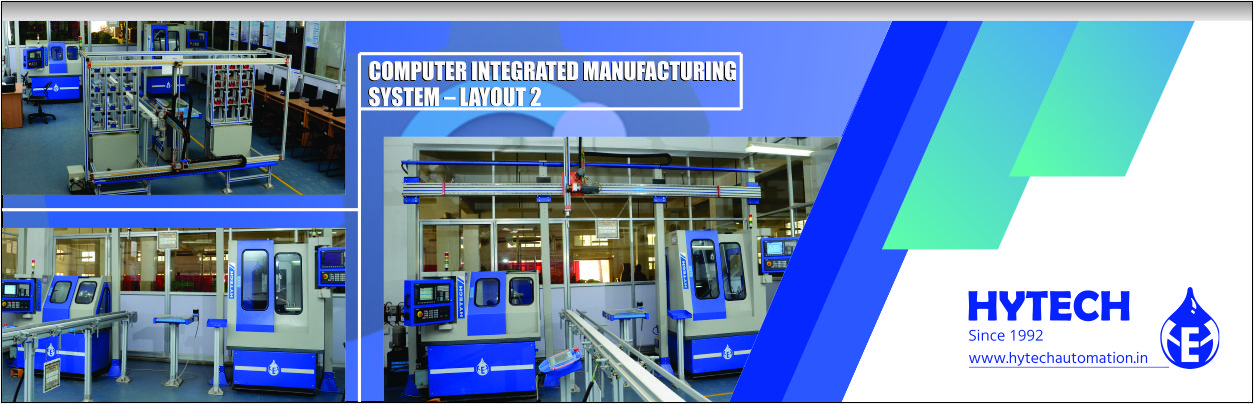

Layout 2 (Computer Integrated Manufacturing System with Gantry, Conveyor & Automated Guided Vehicle (AGV)):
This layout consists of following major equipment / software:
- CNC Turning Center
- CNC Milling (Vertical Machining) Center
- Automatic Storage and Retrieval System (36 cells)
- Industrial Flex belt conveyor with load capacity of 45 KG
- Vertical Gantry for machine loading operation with minimum travel of 4 meter
- Magnetic strip guided ‘Automated Guided Vehicle’ (AGV)
- Linear transfer stations, one each at each station of AGV (ASRS and Machine loading)
- Industrial SCADA for communications as well as control of entire system
- 3D Simulation as well as design software (Factory design) with OPC UA connectivity (30 seats)
- Central control station with industrial PLC for entire system connectivity (Industry 4.0 ready)
- Movable Control pendant with touch screen HMI (8 meter)
