‘Hytech’ Hydraulic training kit is designed for educational purpose where students can easily operate the training kits to get necessary hands on experience.
Safety is of utmost importance when it comes to operation by students and we have focused on the same aspect in both models of our hydraulic training kits.
Hydraulic training kit (Model: Basic) is designed to provide hands on experience on conventional hydraulic valves. In other words, no valve in Basic Hydraulic training kit requires electrical supply to operate.
There are two relief valves provided in the kit, one on the hydraulic powerpack and the other on the training kit. Participants can use the valve mounted on the training kit for experimental purpose. Valve mounted on the hydraulic powerpack decided the maximum operating pressure of the training kit.
Basic hydraulic training kit is equipped with conventional valves which are operated manually.
Basic hydraulic training kit is provided with Automsim circuit design and simulation software. Participants can first design the hydraulic circuit on AutomSim software, simulate the circuit and then execute the same on the hardware kit.

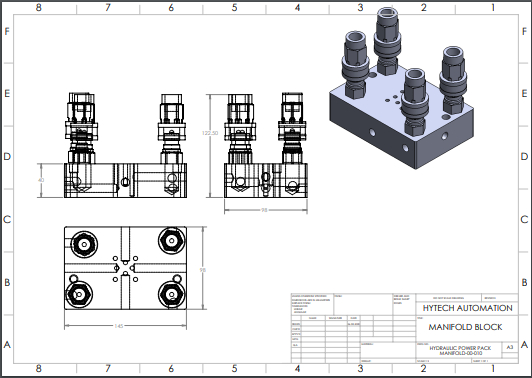

Valve plates are indigenously designed for CETOP 3 mountings. P, T, A and B ports are laser engraved on valve plates to make sure that students understand the different ports of a valve very clearly.
Pressure as well as Tank lines from Hydraulic powerpack are hard piped to P manifold and T manifold on the training platform. This makes sure that the necessary connections required to operate the training kit and to avoid any accident can not be changed at any time.
Pressure as well as Tank lines from Hydraulic powerpack are hard piped to P manifold and T manifold on the training platform. This makes sure that the necessary connections required to operate the training kit and to avoid any accident can not be changed at any time.
Hydraulic Training Kit (Basic):
Horizontal work area on front face | 1200mm x 360mm |
Horizontal work area on back face | 1200mm x 360mm |
Vertical work area on front face | 1200mm x 720mm |
Vertical work area on back face | 1200mm x 720mm |

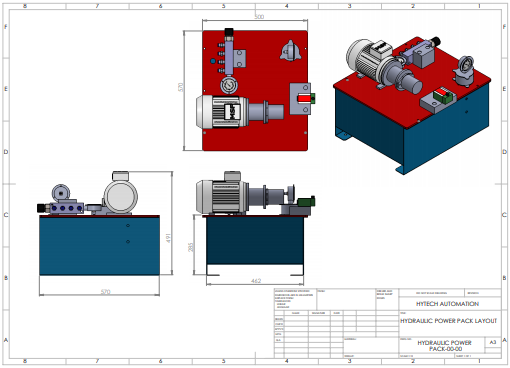

Hydraulic powerpack provided has following specifications:
Tank Capacity | 30 Liter |
Motor Capacity | 2 HP |
Pump Capacity | 6 LPM / 8LPM |
Pressure Generation Capacity | 120 Bar |
Relief Valve Capacity | 100 Bar |
Oil Used | Servo 68 / Enklo 68 |
Hydraulic Hose Capacity | 280 Bar |
Hydraulic Quick Connect Coupling Capacity | 210 Bar |
Hydraulic Plate Capacity | Tested at 210 Bar |
Hydraulic training kit is provided with four castor wheels with load carrying capacity of 150 KG each and equipped with brakes. Additional mounting stands are provided which can be lowered when needed to provide additional stability to the kit by lifting castor wheels breaking their contact with ground surface.
Hose mounting stand is provided on the left hand side of a training kit.
