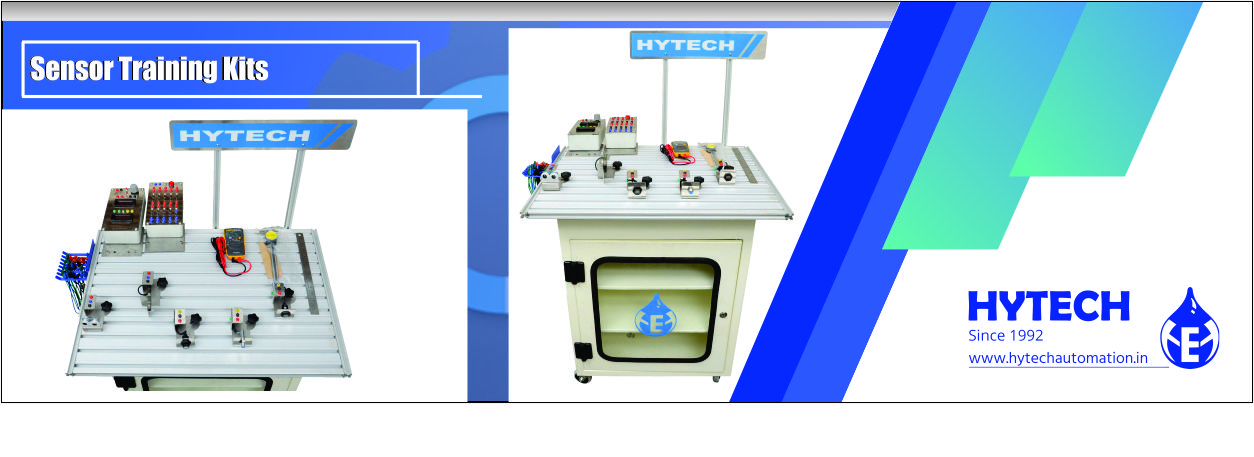

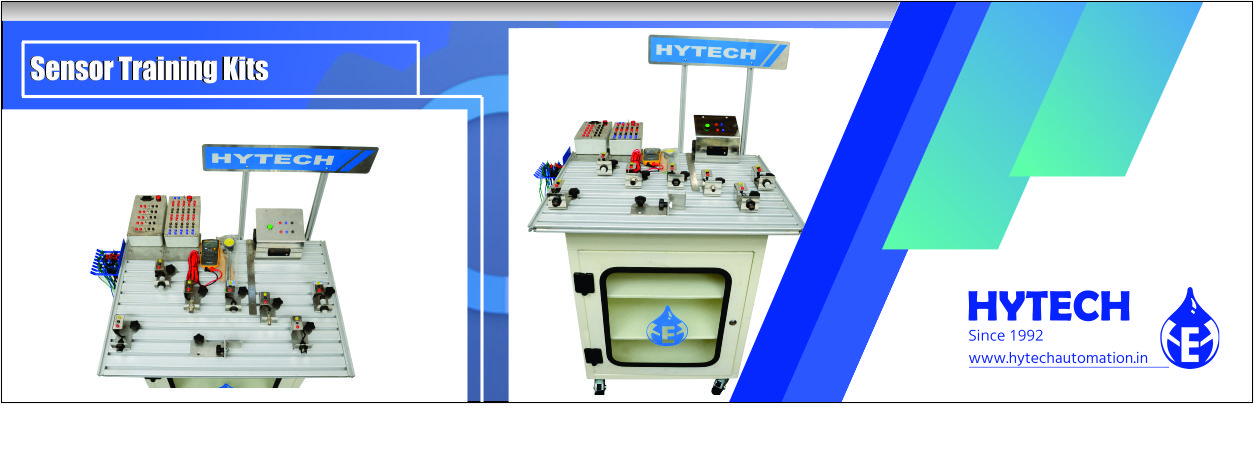

Sensor training kit is designed to offer hands on experience to users about the various digital sensors which are used in the industrial automation sector.
Various equipment such as power distribution box, patch chords, counter, vernier, digital multi meter are provided to measure the efficiency of the sensors.
All sensors are mounted on a aluminum profile base which can be shifted very easily. Dedicated reflector device with various types of reflecors is provided for efficient performance measurement of sensors.
Fabricated panel is provided for storage of equipment. The panel is equipped with four castor with brakes.
All sensors are equipped with a mounting stand with 2mm banana terminals for supply as well as output connections.
Red Banana Terminal: +24V supply
Black Banana Terminal: 0V
Yellow Banana Terminal: Output
Digital Sensor Training Kit:
| Sr No | Description | Qty |
| 1 | Inductive Proximity Sensor – M12 | 2 |
| 2 | Inductive Proximity Sensor – M18 | 2 |
| 3 | Fiber Optic Sensor with digital display and teach mode | 1 |
| 4 | Diffuse Sensor PNP type – M18 | 1 |
| 5 | Through Beam Sensor PNP – M18 | 1 |
| 6 | Reflex Sensor PNP – M18 | 1 |
| 7 | Capacitive Proximity Sensor | 2 |
| 8 | Frequency Counter Unit (Digital) | 1 |
| 9 | Power Distribution Box (Input 24V) | 1 |
| 10 | Power Supply Box (Input 230V) | 1 |
| 11 | Sensing Unit | 1 |
| 12 | Sensing Elements | 1 Set |
| 13 | Patch Cords | 1 Set |
| 14 | Table with Castor Wheels and Brakes (600 x 350 x 750) | 1 |
| 15 | Aluminum Profile Plate 750mm x 540mm | 1 |
| 16 | Dial Vernier – Mitutoyo Make | 1 |
| 17 | Digital Multimeter | 1 |
| 18 | Metal Scale | 1 |
Analog Sensor Training Kit:
| Sr No | Description | Qty |
| 1 | Ultrasonic Distance Sensor | 1 |
| 2 | Analog Ultrasonic Sensor | 1 |
| 3 | Load / Strain Measuring Unit | 1 |
| 4 | Load / Strain Amplifier with Digital Display | 1 |
| 5 | Analog Inductive Sensor M12 | 1 |
| 6 | Ultrasonic Distance Measurement Sensor with Display | 1 |
| 7 | Analog Power Supply with Digital Display | 1 |
| 8 | Power Distribution Box (Input 24V) | 1 |
| 9 | Power Supply Box (Input 230V) | 1 |
| 10 | Sensing Unit | 1 |
| 11 | Sensing Elements | 1 Set |
| 12 | Patch Cords | 1 Set |
| 13 | Table with Castor Wheels and Brakes (600 x 350 x 750) | 1 |
| 14 | Aluminum Profile Plate 750mm x 540mm | 1 |
| 15 | Dial Vernier – Mitutoyo Make | 1 |
| 16 | Digital Multimeter | 1 |
| 17 | Metal Scale | 1 |
