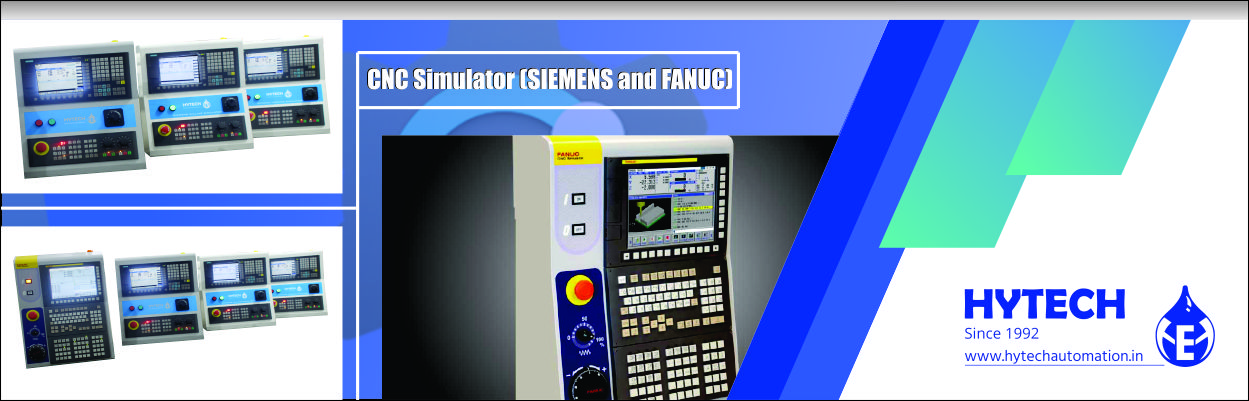

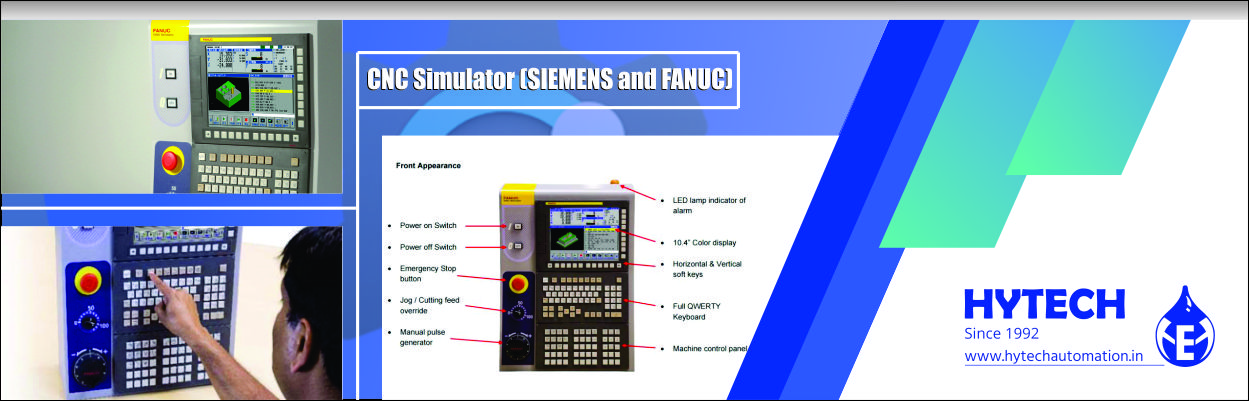

The FANUC CNC simulator is a perfect addition to the classroom and an essential component to gain maximum exposure to FANUC CNC controls when actual machine time is limited. Based on the FANUC 0iF platform, the simulator will allow you at power on to switch between milling and turning configurations to teach programming, navigation and operation on the world’s most popular CNC control. Simple configurations make it easy to learn how to operate and edit data on a modern FANUC control. FANUC’s MGi conversational interface allows user to graphically generate programs that can be simulated in 3D, prior to being converted back to conventional NC programs to be used on machine tools using FANUC controls. Uploading and downloading (read and punch) functions are facilitated by means of the standard Flash ATA interface and USB interface, and DNC functions are supported by Ethernet and Flash ATA card.
Features of Fanuc Simulator:
- Switchable mill and lathe system in one simulator
- 3 axis milling / 2 axis turning system + 1 spindle
- Manual Guide i installed for conversational program creation and 3D simulation
- Inch / metric switchable
- 512kb part program storage, with 400 registered programs
- 32 Tool offset pairs
- Work piece coordinates G52 – G59 + 48 additional on mill
- 4” Color LCD
- Full QWERTY keyboard
- USB, Flash ATA and Ethernet connectivity
- Optional I/O link I and RS232 serial interface
- Power: AC 100 – 240, 0.8A – 0.4A, 50 – 60Hz
- Power consumption 80w
- Weight: Approx. 26.4lb (12KG)
- Dimensions: Approx. 16.5” x 7.5” x 23.3” (421mm x 190mm x 592mm)
