Automation Module for PLC – HMI Training Kits

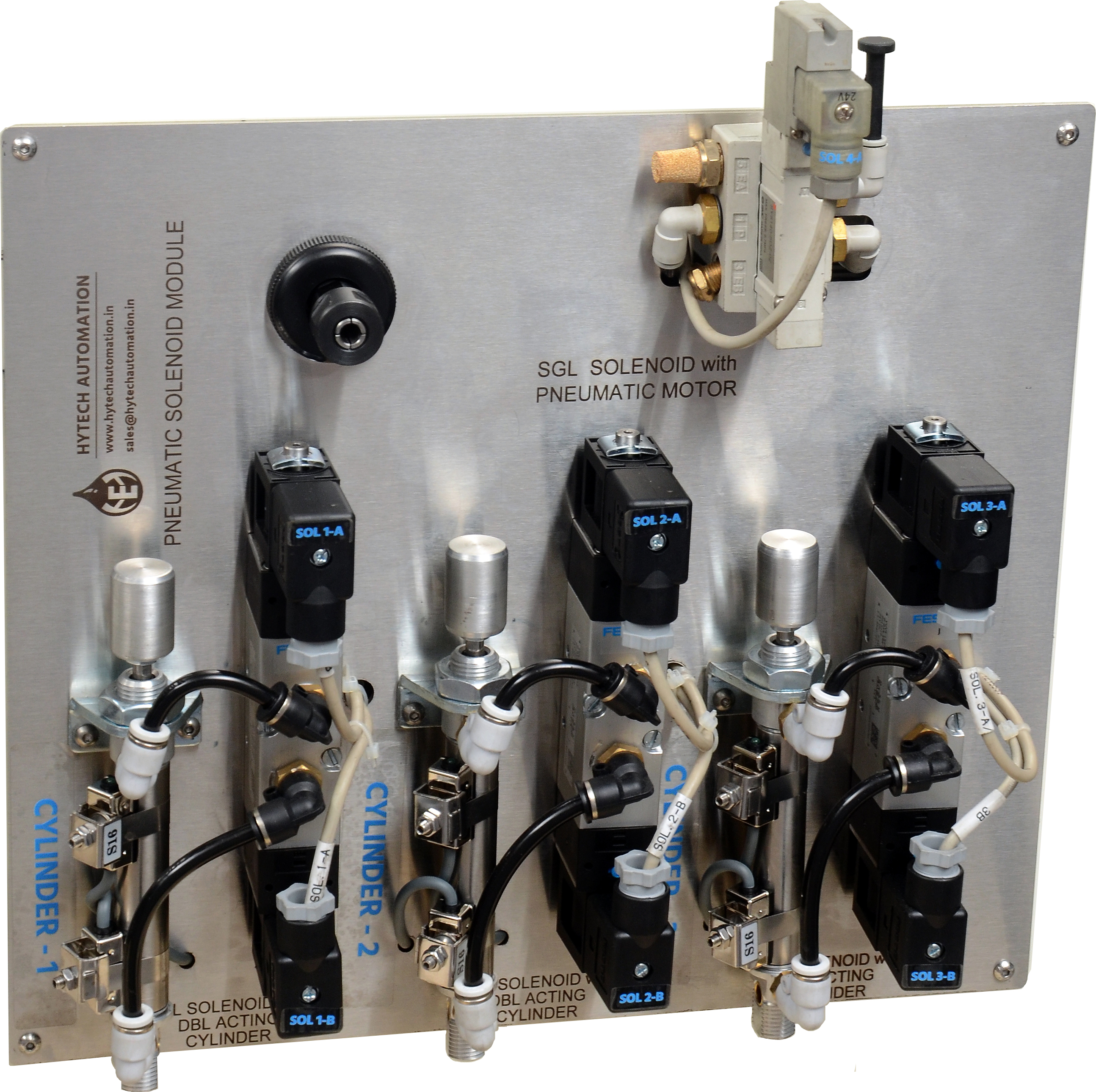

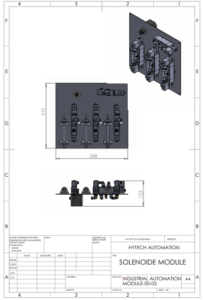

Pneumatic Operation with Solenoid valves and Cylinders
This module is included as a mandatory module in PH Basic as well as PH Advance raining kits. Basic concept of this module is to provide hands on experience on Solenoid and pneumatic cylinder operations with reed switch feedback from PLC and HMI.
Students can carry out various sequencing, time as well as counter based applications with this module. Solenoid valves are one of the most popular as well as commonly used industrial automation devices.
Necessary pneumatic accessories such as pneumatic junction box, PU tube, push pull connectors as well as necessary spares are provided along with the kit.
What exactly this module provides:
- Exposure to Double acting as well as Single acting solenoids
- Solenoid Operation from PLC
- Exposure to magnetic reed switches
- Operation of Double acting cylinders as well as Pneumatic motor in combination from PLC and HMI
- Sequencing, counter and timer applications from PLC and HMI
Bill of material for this module is mentioned below:-
| AC Motor and Encoder Module – BOM | ||
| Description | Qty | Make |
| Double Acting Solenoid Valve | 2 | SMC / Festo |
| Single Acting Solenoid Valve | 1 | SMC / Festo |
| Double Acting Pneumatic Cylinder (Stroke: 30mm) | 2 | SMC / Festo |
| Pneumatic Motor | 1 | Reputed Make |
| Reed Switches for Cylinders | 4 | SMC / Festo |
| PU Tube with necessary push pull connectors | 1 | SMC / Festo |
| Mounting plate in SS 304 for mounting Solenoid valves and cylinders | 2 | NA |
| Output Connections from PLC | ||
| Output from PLC Output module is connected to DC motor through Field output module. | ||
| 1 | Solenoid 1-A | |
| 2 | Solenoid 1-B | |
| 3 | Solenoid 2-A | |
| 4 | Solenoid 2-B | |
| 5 | Solenoid 3-A | |
| Input Connections to PLC | ||
| 1 | CYL 1-A | |
| 2 | CYL 1-B | |
| 3 | CYL 2-A | |
| 4 | CYL 2-B | |
